COMPRESSIBLE FLOW UNIT

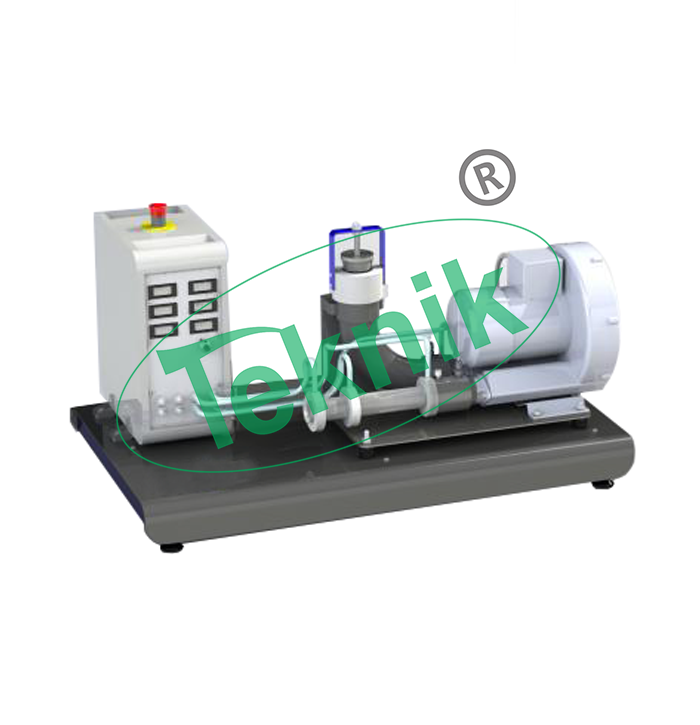

Compressible Flow Unit: MTFM-14

The single-stage compressor is driven by an integral three-phase AC motor. The compressor speed can be varied using an advanced torque-vector frequency inverter which gives stable and accurate speed control plus direct electronic read-out of the torque produced by the motor. The compressor is fitted with an outlet duct incorporating a throttling valve which allows the flow to be varied independent from compressor speed.

The equipment is supplied with a convergent-divergent test section fitted at the compressor inlet designed to produce Mach-1 velocity at the throat. The duct is fabricated from clear acrylic enabling the student to see the construction and the profiles. A pressure-sensing ring tapping is provided at the inlet, at the throat and at the discharge end of the diffuser. This duct allows all the major concepts of compressible flow to be demonstrated.

The electronics console includes two high-range and two low-range differential pressure sensors plus a control for motor speed and displays for the compressor speed, the pressures and the motor torque.

Description

FEATURES:-

Variable-speed air compressor with accurate electronic speed control
Electronic pressure sensors
Standard unit includes convergent-divergent duct designed to produce Mach 1 velocity at the throat
Data logging option available
Lower speed operation
Integral motor with direct drive
Reduced operating noise
Reduced vibration levels

TECHNICAL SPECIFICATIONS:-

A bench top unit designed to demonstrate and teach the fundamentals of compressible flow to engineering students
Fitted with a single-stage, side-channel blower
Complete with convergent-divergent duct capable of achieving Mach 1 velocity at the throat
Advanced torque-vector speed control of blower motor with electronic torque measurement
Four electronic pressure sensors
Test section made from clear acrylic
Additional test sections available (6 off) complete with bench top stand
Compressor test accessory available
Data logging accessory available, complete with educational software and electronic temperature sensors
Compressor speed : 3,300 rpm (max)
Stages : 1
Motor Power : 55 kW
Sensors: +/- 103.4 kPa 1 off
