Understanding Wi-Fi/Smart Led Television: MTEV-03

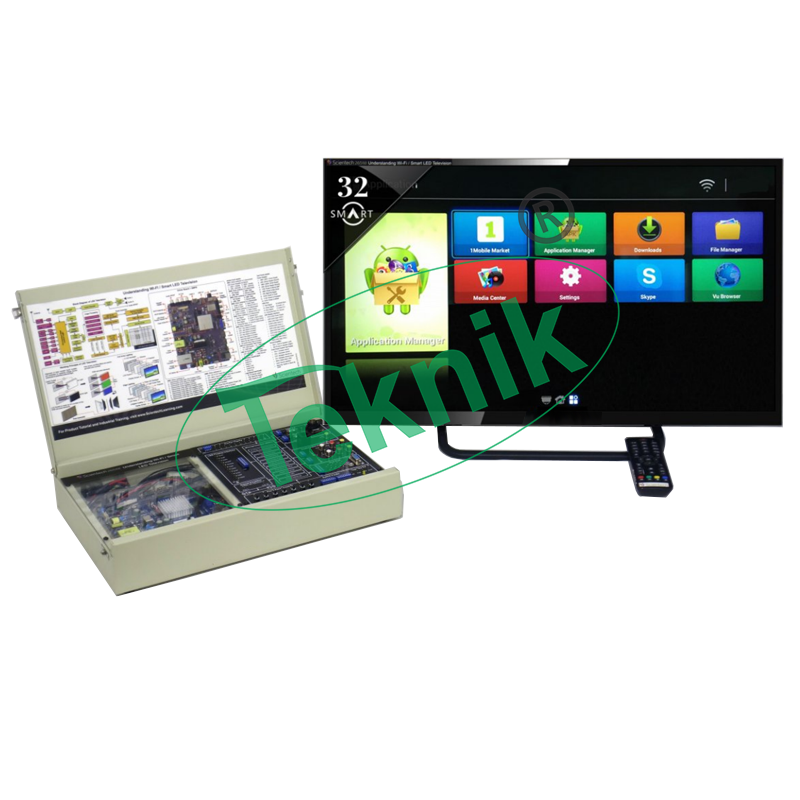

Understanding Wi-Fi / Smart LED Television is a friendly training platform to learn the operation of Wi-Fi/Smart LED Television receiver. It is demonstrator cum training system specifically designed for the comprehensive practical study on Wi-Fi/Smart LED TV engineering for the beginners with a basic knowledge of the various electronic building blocks and fundamentals of communication system. A Wi-Fi/Smart television has a built-in wireless adapter. This allows the TV to connect to the wireless high-speed internet connection and stream online content like movies and music through subscription services.

This didactic product develops the sense of investigation within the student and familiarizes him with repair/design techniques. One of the main features of this training system is fault simulation to educate on actual fault finding, by simulating faults on this platform. The complete block diagram of Wi-Fi/Smart LED TV system is printed on the mimic. Finally this equipment allows us to do experiments and to observe waveforms/signals/voltages of different sections, which are guided thoroughly by theory and product tutorials to gain in-depth knowledge of the system.

FEATURES:-

• Superior quality 32-inch full HD Wi-Fi/Smart LED Color Television/ PC Monitor Manual and Remote control operation
• Built in Wi-Fi adaptor
• PAL/ NTSC video formats
• Composite video input/ VGA input
• Soldering free fault creation and troubleshooting
• Complete block diagram of a Wi-Fi/Smart LED TV system on-board
• Easy identification of different parts and components of the system at a glance
• Easy measurement of voltages and observation of waveforms on test points.

TECHNICAL SPECIFICATIONS:-

• Display
• Display Type : Wi-Fi/Smart LED, HD
• Screen Size : 80cm
• Display Resolution : 1366 X 768 pixels
• Contrast Ratio : Mega Contrast Ratio
• Display Color : 16.9 Million Display Colors
• Viewing Angle : 170 (H) X 170 (V)
• Refresh Rate : 50 Hz
• Video Interface : Video Input/ VGA input
• Audio Interface : RCA L & R
• Audio Output Power : 8W X 2
• Receiving System : PAL and NTSC
• Channel Coverage : VHF-2-12; UHF21-69; CATV (X~Z+2, S11S41)
• Antenna Impedance : 75Ω Unbalanced
• Application : Color Television/ PC Monitor Connectivity
• Wi-Fi Connectivity : Yes
• USB : 1 X USB 2.0 (MPEG, JPEG, MP3)
• USB : 1 X USB 3.0 (MPEG, JPEG, MP3)
• HDMI : Yes (1 X HDMI)
• Other Connectivity : RF In, AV In, VGA In, VGA Audio In, AV out, SPDIF, LAN
• Composite A/V : Yes
• Analog Audio : Yes
• Test Points: 55 nos.
• Switched Faults: 50 nos.
• Remote Battery: UM-4, “AAA” 1.5V (2 nos.)
• Mains Supply : 110-260V AC ± 10%, 50/60Hz
• Power Consumption : 65W

** Note:-The content of the product and specification are subject to change without prior notice for continuous improvement. Images shown are for representation purpose only. “MICROTEKNIK “keeps the right to modify the content in the product without prior notice.**
