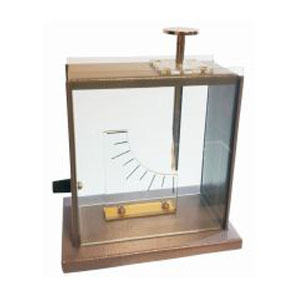

Electroscope (Metal case)
Electroscope (Metal case):MPH-ES-14
- It has an insulating bush carrying a metal blade underneath it and inside the chamber to which a single metal leaf may be pivoted which deflects, when charged.
- The case provided with a
terminal for earthing. The front window is clear and the rear window is of ground glass. - An internal transparent scale graduated 0 to 90º is provided for measuring the deflection of the leaf.
- Includes two interchangeable electrodes that can be fitted on top of insulating bush – a disc electrode of diameter 50mm, mounted on a peg and a metal ball of 25mm diameter to study the charge capacities of both the electrodes.
*Note: image shown above is for illustration purpose only; Actual image may vary due to specification, Design, Technology and R&D.*
