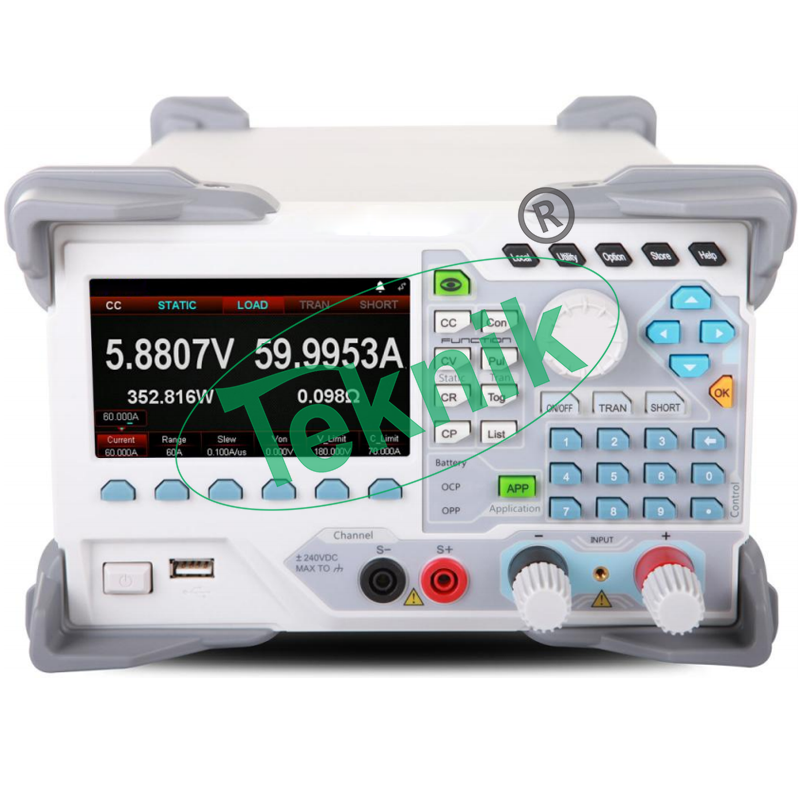

Description
TECHNICAL SPECIFICATIONS:-
- Voltage 0 ~ 150 V
- Current 0 ~ 40A
- Maximum Power 200W
- Minimum Operating Voltage (DC) 40A@1V
- Range 0 ~ 4 A
- Programmable1 mA
- Resolution Programmable Accuracy ± (0.05%+0.05%FS[2])
- Programmable Temperature Coefficient100 ppm/°C
- Accuracy ± (0.05%+0.05%FS)
- Temperature Coefficient 50 ppm/°C
- Power AC Input (50 Hz~60 Hz)115 Vac± 10%, 230 Vac± 10% (max: 250 Vac)
- Maximum Input Power <30 VA
- Interface USB Device Interface 1
- USB Host Interface 1
- LAN Interface 1 (optional)
- Digital I/O 1 (optional)
- GPIB 1 (optional, USB-GPIB interface converter)
- Environment Cooling Method Fan Cooled
- Operating Temperature 0°C~40°C
- Storage Temperature -40°C ~70°C
- Humidity 5%~80% RH (without condensation)
- Altitude Below 2,000 m
ACCESSORIES:-
- Power Cord
- USB Cable
OPTIONAL ACCESSORIES:-
- Sense Cable for Sense inputs.
- Load input 20 A cables. Cable is 30 inches long.
- Load input 40 A cables. Cable is 30 inches long.
- Load input 60 A cables. Cable is 30 inches long.
- Terminal Shield for covering front inputs of load Clear Plastic.
** Note:-The content of the product and specification are subject to change without prior notice for continuous improvement. Images shown are for representation purpose only. “MICROTEKNIK” keeps the right to modify the content in the product without prior notice.
