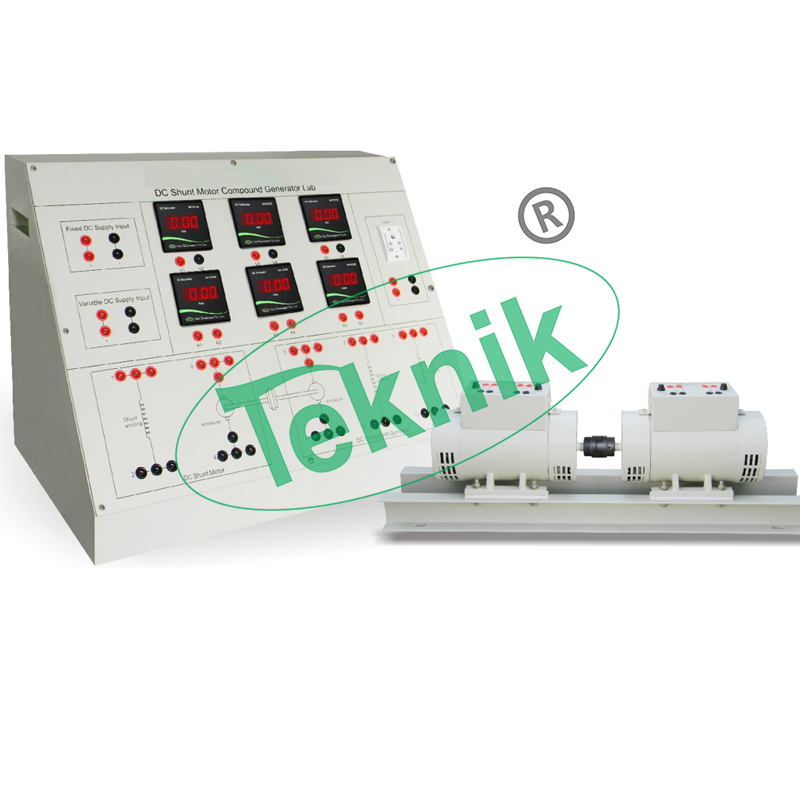

DC SHUNT MOTOR COMPOUND GENERATOR LAB
DC Shunt Motor Compound: MTEE-32B
DC Shunt Motor Compound Generator Lab is a definitive system for the Electrical Machines Laboratories that provides comprehensive learning of a DC Compound Generator under different loading conditions.
The DC Compound Machine is a combination of a Series and Shunt Wound Machine and hence allows the same to have the torque characteristics similar to Series Machine and the speed characteristics resemble to Shunt Machine provides complete learning contents to demonstrate various experiments like working operation of DC Compound Generator, analyzing Speed-Current, Current-Voltage and Voltage-Speed characteristics etc.
There is a digital panel meets to obtain precise results. Diagrammatic representations are provided on the control setup so that users can make connections by their own also includes terminals for three point starter and rheostats so to make these connections externally to the control setup. All the protective schemes are being implemented to avoid fault or danger and hence product will assist user to enhance their practical knowledge with safety.
FEATURES:-
- Electrical Loading Arrangement
- Flexible Shaft Coupling Arrangement
- Provided with Digital Tachometer
- Machine with Class “B” Insulation
- Good quality digital panel meters
- Heavy Duty Base/Channel
- Designed by considering all the safety measures
- Diagrammatic representation for the ease of connections
- Exclusive and Compact Design
TECHNICAL SPECIFICATIONS:-
- Operating Voltage Fixed DC 200V
- Variable DC : 0-200V
- DC Motor
- Type : Shunt
- Power Rating : 1HP
- Voltage Rating : 200V, ±10%
- Speed : 1500 rpm
- Insulation Class : “B”
- DC Machine
- Type : Compound
- Power Rating : 1HP
- Speed : 1500 rpm
- Current Rating : 4.1A
- Insulation Class : “ B”
- Digital Meters used
- DC Voltmeter: 300V (2 Nos.)
- DC Ammeter: 5A (3 Nos.)
** Note:-The content of the product and specification are subject to change without prior notice for continuous improvement. Images shown are for representation purpose only. “MICROTEKNIK“ keeps the right to modify the content in the product without prior notice.
