PWM MODULATION AND DEMODULATION TRAINER

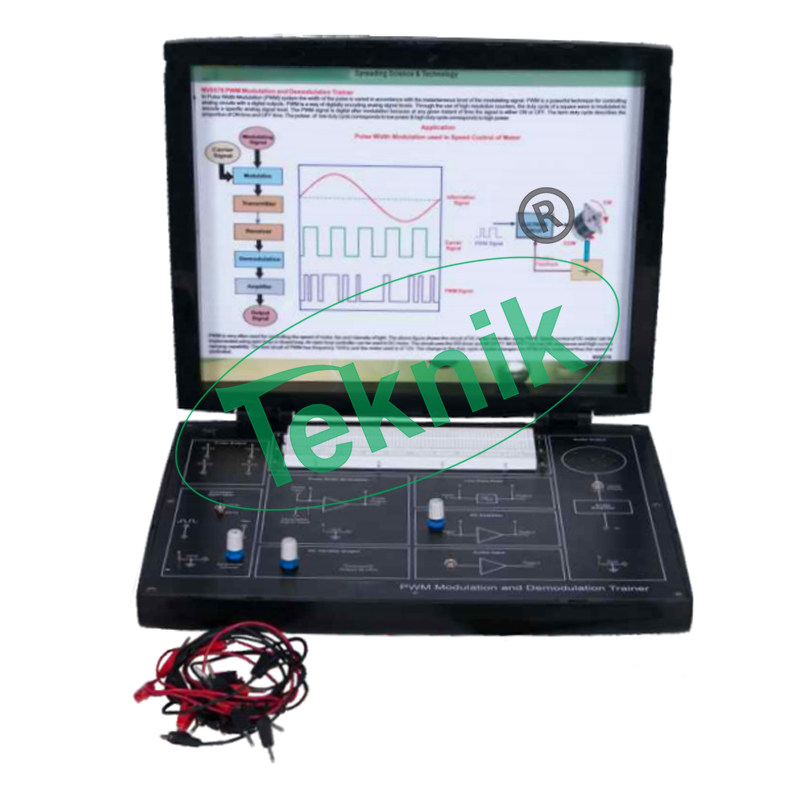

PWM Modulation and Demodulation Trainer: MTBE-50
PWM Modulation and Demodulation Trainer is useful training product for students to understand the concept of Modulation and Demodulation. Pulse width modulation (PWM) is a technique used for controlling analog circuits with processor’s digital outputs. PWM is a way of digitally encoding analog signal levels. The duty cycle of a square wave is modulated to encode a specific analog signal level. The PWM signal changes the width at any given instant of time.
FEATURES:-
- Self-contained Trainer
- Selectable 4 pulse frequencies on board
- On board Sine and Square wave Generators
- Voice Communication using Dynamic Microphone and Speaker
- On Board Filter and AC Amplifier
- Functional Blocks indicated on board mimics
- Input-Output and test points provided on board
- In-built DC Power Supply
- Compact Size
- Learning material CD
SCOPE OF LEARNING:-
- To study the Pulse Width Modulation
- Concept of Duty Cycle
- To study the Demodulation
- To study the Voice Modulation and Demodulation
TECHNICAL SPECIFICATIONS:-
- Pulse Output (frequency) : 8kHz, 16kHz, 32kHz, 64kHz (approximate)
- Function Generators
- Sine wave : (Gain Adjustable)1kHz (12Vpp)2kHz (4Vpp)
- Square wave : 1kHz & 2kHz (6Vpp)
- Low Pass Filter : 4th order BW Filter
- Voice Communication : Voice Link using Dynamic Mini
- Microphone & Speaker
- AC Amplifier : With adjustable gain control
- DC Variable Output : 0-12V
- Power Supply : 230V ±10%, 50Hz
- Power Consumption : 3VA (approximate)
** Note:-The content of the product and specification are subject to change without prior notice for continuous improvement. Images shown are for representation purpose only. “MICROTEKNIK” keeps the right to modify the content in the product without prior notice.
