EXPERIMENTATION WITH TWO PORT LADDER NETWORK
Experimentation with Two Port Ladder Network: MTBE-29

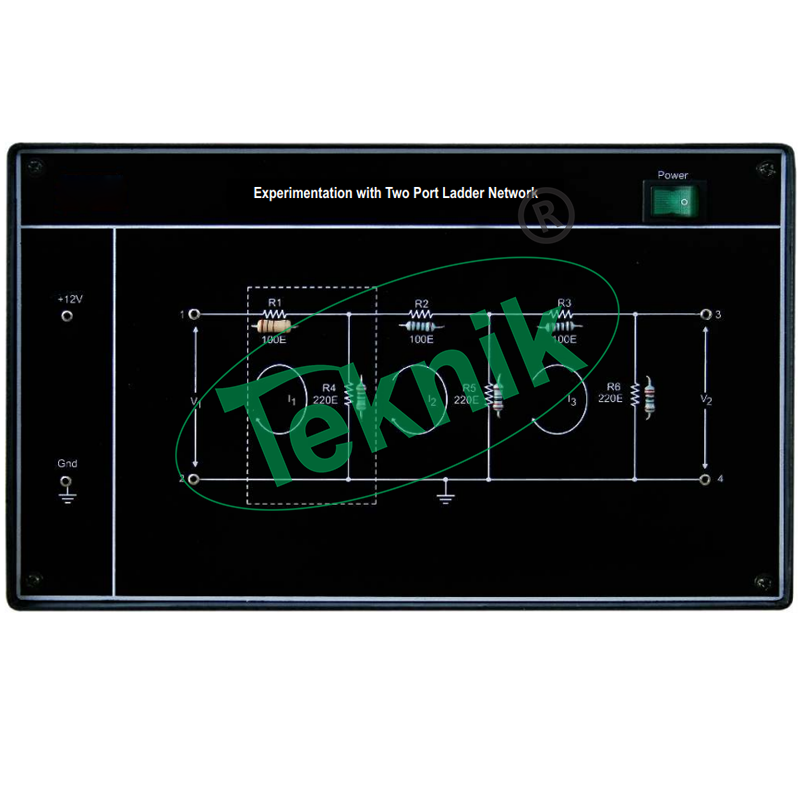

Experimentation with Two Port Ladder Network is a useful trainer to illustrate the importance of Transfer Function of two port ladder network. It is the general configuration of a ladder network in which series arm is represented as Impedance arm and Shunt arm is represented as Admittance arm. If each arm represents one element, the network is known as a simple ladder network otherwise, the ladder network may contain arms, which represent series – parallel combination of elements. It can be used as stand-alone unit with inbuilt DC power supply. Includes the experimental calculation of Transfer Function of two port ladder network and verifies the results by comparing it with the theoretical value in a simple manner. The training system helps one to be fully acquainted with the significance of Transfer Function of two port ladder network.
FEATURES:-
- Exclusive and Compact design
- Inbuilt +12V DC Power Supply
SCOPE OF LEARNING:-
- Study and verification of Transfer Function of Two Port Ladder Network
TECHNICAL SPECIFICATIONS:-
- DC Power Supply : 12V, 150mA
- Transfer Function (Theoretical) : 0.205
- Transfer Function (Practical) : 0.205
** Note:-The content of the product and specification are subject to change without prior notice for continuous improvement. Images shown are for representation purpose only. “MICROTEKNIK” keeps the right to modify the content in the product without prior notice.
