EXPERIMENTATION WITH KIRCHHOFF`S CURRENT AND VOLTAGE LAW
Experimentation with Kirchhoff’s Current and Voltage Law: MTBE-26

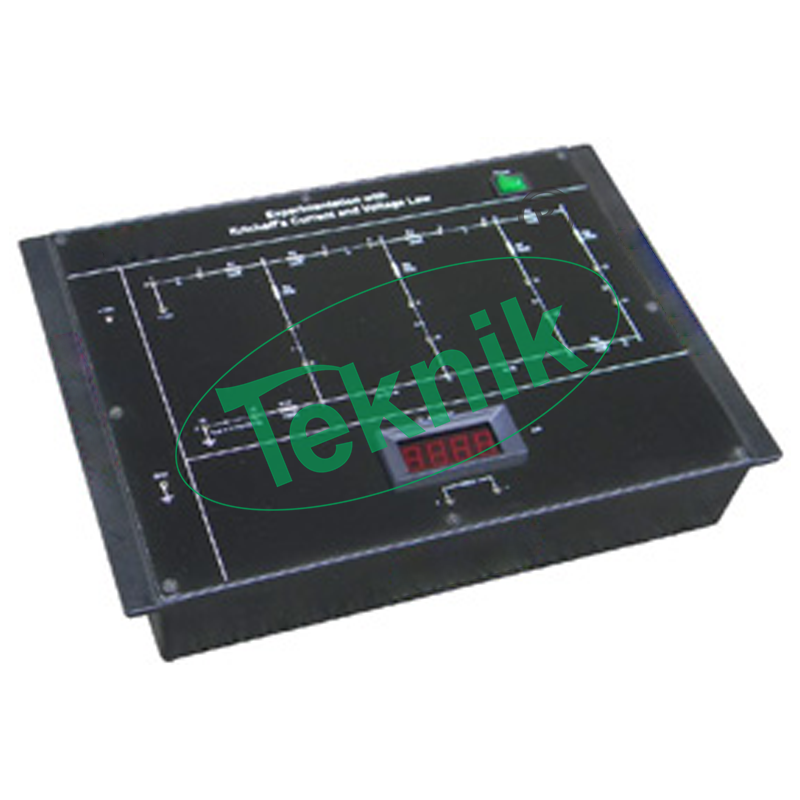

Kirchhoff’s Current and Voltage Law Trainer is a compact, ready to use experiment board. It is useful for students to study and understand the basic concept behind Kirchhoff’s Current Law and Kirchhoff’s Voltage Law. It can be used as a stand-alone unit with its in-built DC power supply and DC Ammeter.
FEATURES:-
- Stand-alone unit, requires no extra accessories
- Exclusive and compact design
- In-built DC power supply
- In-built DC Ammeter
- Diagrammatic representation for the ease of connections
- E-Manual
SCOPE OF LEARNING:-
- Verification of Kirchhoff’s Current Law
- Verification of Kirchhoff’s Voltage Law
TECHNICAL SPECIFICATIONS:-
- Power Supply : 230 V ±10%, 50 / 60 Hz
- DC Power Supply : +12V
- Fuse : 500 mA, slow blow
- DC Ammeter :
- Range : 2ìA to 200mA
- Display : 3 ½ digit
** Note:-The content of the product and specification are subject to change without prior notice for continuous improvement. Images shown are for representation purpose only. “MICROTEKNIK” keeps the right to modify the content in the product without prior notice.
