EXPERIMENTATION WITH KELVIN`S BRIDGE
Experimentation with Kelvin’s Bridge: MTBE-35

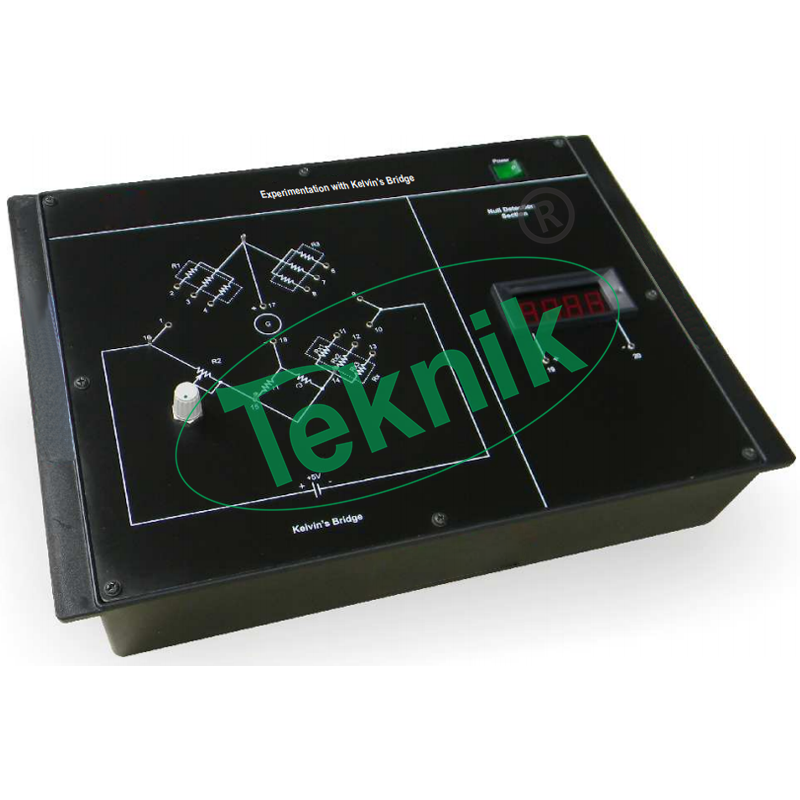

Experimentation with Kelvin’s Bridge is a useful training product for measuring very small values of resistance. Kelvin’s double bridge or Kelvin’s bridge (as it is commonly known) is a variation of Wheatstone bridge and is based on the same principle. By setting the null point we can evaluate the unknown resistance. This product has Digital Display (DPM) for the purpose of null detection implemented on the trainer board itself.
FEATURES:-
- Easy illustration of Kelvin’s bridge
- Digital display (DPM) for null detection
- In-built sine wave generator
- Adjustable frequency and Amplitude of Sine Wave
- Digital display for Null detection
SCOPE OF LEARNING:-
- Determination of unknown resistance using Kelvin’sbridge method
TECHNICAL SPECIFICATIONS:-
- DC Power Supply : +5V
- Known Resistance : R1=100KÙ, 20KÙ, 10KÙR3=1KÙ, 200Ù, 100Ù
- Unknown Resistance : 0.3Ù, 0.4Ù, 0.8Ù
- DPM : 2V
- Mains Supply : 230 V ±10%, 50 Hz
** Note:-The content of the product and specification are subject to change without prior notice for continuous improvement. Images shown are for representation purpose only. “MICROTEKNIK” keeps the right to modify the content in the product without prior notice.
