Diesel Injection Pump Test Bench
Diesel Injection Pump Test Bench: MT-DIP
- Speed range up to 3750 rpm.
- 3-phase power supply 380 V±10% Standard oil atomizer Pintail.
- Motor: 3 phase.
- Output power: 5.5/7.5/11/15/18.5/22 kw.
- Testing high pressure of oil supply: 0-3.5 MPa.
- Mode of speed regulation Frequency control Testing low pressure of oil supply: 0-0.35 MPa.
- Control system Integrated industrial computer Maximal Injection quantity 10 L/Min.
- Video mode 15 “LCD Temperature stabilization 40±2.
- Adjustable rotation speed range 0~4000 rpm VE internal pressure 0-1.6 MPa.
- Small graduated flask volume 45 ml Range of air supply pressure 0-0.15 MPa.
- Volume of oil tank: 60 L
- Electric heater: 1 kW/220 VAC.
- DC. Supply: 12/24 V
- Center height: 125 mm.
- Testing cylinders 12 Overall dimensions (mm): 2150 * 750 * 1800 mm.
- Volume oil preset number; 0-1000 times.
- Net weight (kg): 860-1100 kg.

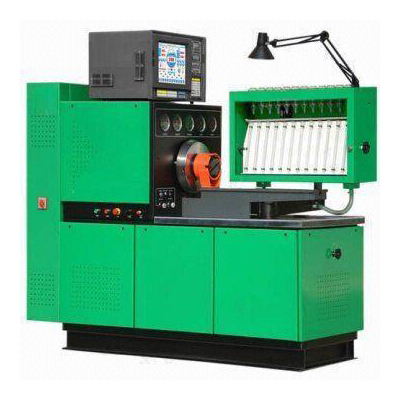

Note: image shown above is for illustration purpose only; Actual image may vary due to specification, Design, Technology and R&D.
