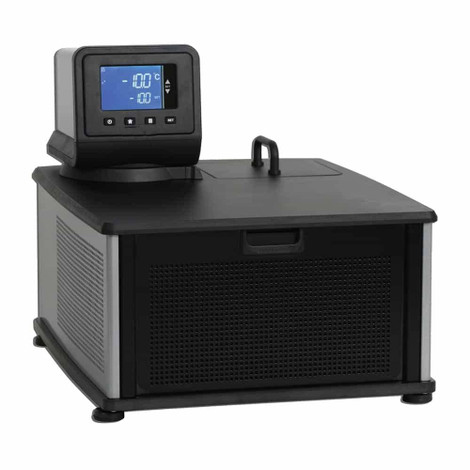

Cold Temperature Calibration Bath
REALLY COLD TEMPERATURE CALIBRATION BATH: JEQ-02A
Outer chamber made of CRC sheet with powder coating and inner chamber ss-316/304. Cover SS.
Magnifier on mount 8x, Total unit moveable on castors, Temperature is brought down by hermetically.
Sealed compressor, controlled by microprocessor temperature controller and indicator. Fluid level adopter.
TECHNICAL SPECIFICATION:
Temperature Range : −60 °C to 110 °C
Stability :
±0.0025 °C at −60 °C (methanol).
±0.002 °C at 0 °C (methanol).
±0.0015 °C at 25 °C (water).
±0.003 °C at 100 °C (oil 5012).
Temperature Setting : Digital display with push-button data entry.
Set-Point Resolution : 0.01 °C; high-resolution mode.
Display Resolution : 0.01 °C.
Digital Setting Accuracy : ±1 °C.
Digital Setting Repeatability : ±0.01 °C.
Heaters : 500 and 1000 Watts.
Access Opening : 127 x 254 mm (5 x 10 in).
Depth : 305 mm.
Wetted Parts : 304 stainless steel.
Power : 230 VAC (±10 %), 50Hz, 13A, single phase.
Volume : 27 liters.
Note: image shown above is for illustration purpose only; Actual image may vary due to specification, Design, Technology and R&D.
