CNC Radial Arm Drilling Machine
CNC RADIAL ARM DRILLING MACHINE : MTS-3503R
- Power main motor : 3 Kw
- Lifting motor : 1, 1 kW
- Drilling capacity in steel : 40 mm
- Continuous drilling cap. Steel(S235JR) : 36 mm
- Tapping capacity : M30
- Throat : 280 mm
- Working surface table Length x width : 940 x 600 mm
- Working table cube table : 600 x 450 x 450 mm
- Length x width x height : 1’940 x 750 x 2’010 mm
- Total weight : 2’500 kg
- CNC Router, 3-axis setup
- Windows 7 or latest operating platform 19” flat screen monitor with 2 USB connections
- Network connection RJ 45 10/100 M bit
- Easy input of processing data via EluCam 3-D display
- Network connection RJ 45 10/100 M bit

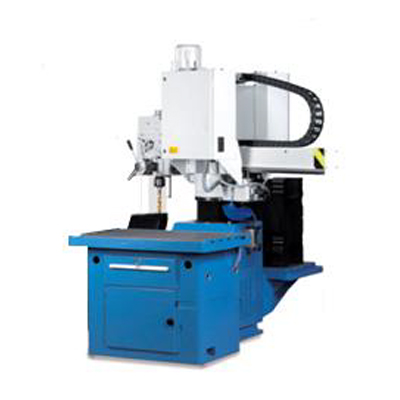

Note: image shown above is for illustration purpose only; Actual image may vary due to specification, Design, Technology and R&D.
