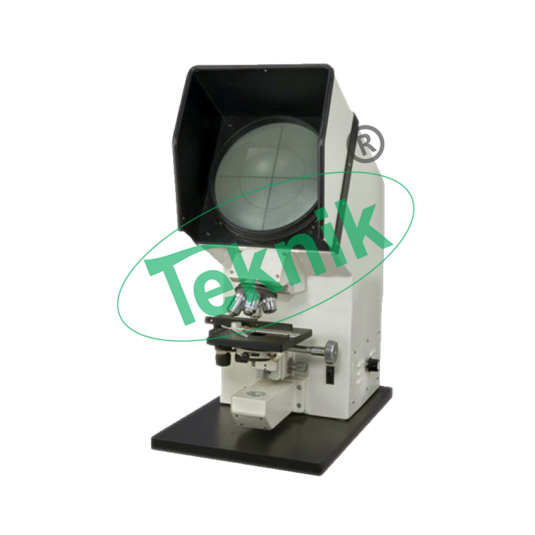

Projection Microscope is very useful for routine observation and complex type measurements of specimen magnified on screen, group observations, discussions and teaching. Equipped with a 195 mm diameter Special material graduated screen Built-in base illuminator & diaphragm which is directed to the condenser which again is reflected through a mirror to the objective and compensating eyepiece for projection on to the screen again by a reflector.
Graduated Mechanical stage is also provided on the large stage for backward and forward movements.
within 30mm& 40mm scales read by verniers to 0.1mm Screen-head is rotatable through 360°with cross scales vertically and horizontally within 140mm A quadruple nose-piece carries has four objectives : 5X, 10X, 20X & 40X giving magnification from 125X to 1000X.
JCR-3B: Magnification from 125X to 1500X.
JCR-3M: Incorporated with Binocular Head.
JCR-3J: Same as JCR-2B Screen of 150 mm diameter.
