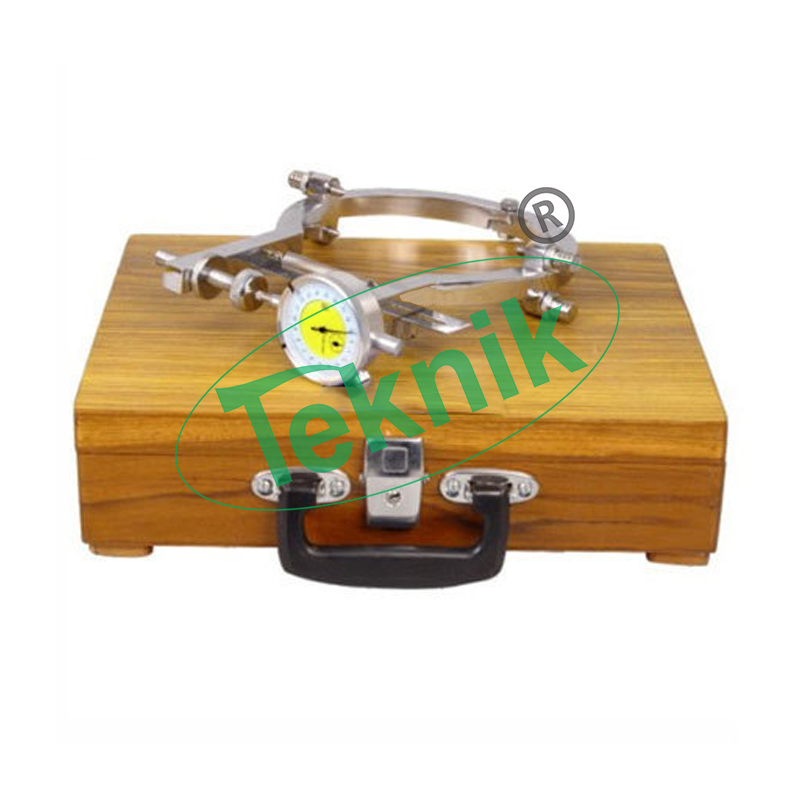

- The unit consists of two movable frames pivoted at one end.
- The extensometer is fixed to the specimen with the help of tightening screws.
- The lateral extension is indicated on a dial gauge of 0.002mm x 12mm travel.
- The extension is magnified 2.5 times and the dial gauge readings are to be divided by 2.5 to get the exact readings.
- A spacer strip is provided to initially set the dial gauge, and can be removed after initial setting.
- Supplied in a wooden carrying case.
- The lateral extensions of 15cms dia x 30cm high cement concrete
- Cylinders while testing them under compression.
